H2/H2O-power-to-gas-to-power systems that produce hydrogen by electrolysis and generate electricity from this hydrogen are promising large-scale electric energy storage systems for grids that are hosting ever greater share of intermittent renewables. On the flip side, such systems require complex thermal management and must be sufficiently large to improve the utilisation of waste heat for higher system efficiency.
With this in mind, researchers from Japan’s Tokyo Institute of Technology (Tokyo Tech) are proposing an alternative system: a “carbon/air secondary battery” (CASB) that uses a carbon/carbon-dioxide redox reaction with potentially higher volumetric energy density and system efficiency than those of the hydrogen energy storage systems.

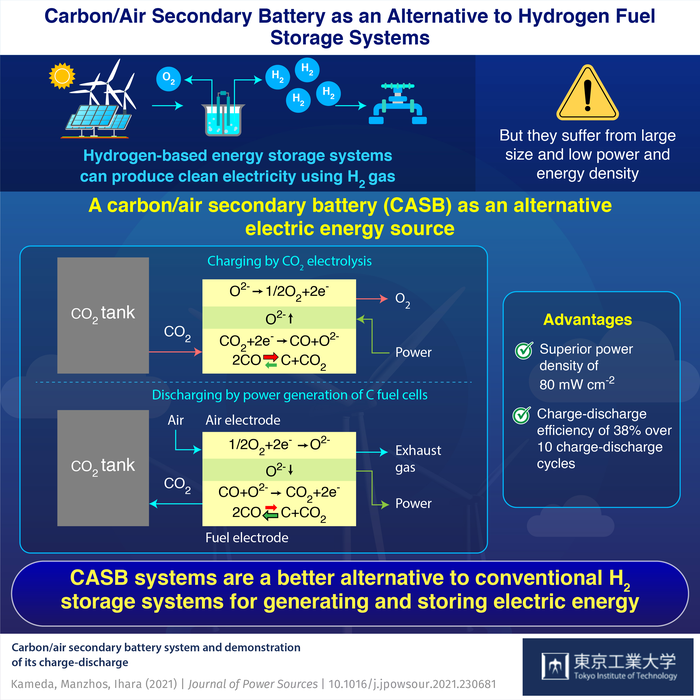

The CASB system is an electric energy storage system that consists of a solid-oxide fuel and electrolysis cell (SOFC/ECs) where carbon generated via electrolysis of carbon dioxide (CO2) is oxidised with air to produce energy. The SOFC/ECs can be supplied with compressed liquefied CO2 to make up the energy storage system.
“Similar to a battery, the CASB is charged using the energy generated by the renewable sources to reduce CO2 to C. During the subsequent discharge phase, the C is oxidised to generate energy,” explains Professor Manabu Ihara of Tokyo Tech.
The researchers tested both the energy density and charge-discharge efficiency of the system. While the energy density of the CASB is limited by the amount of carbon it can hold, they found that the CASB had a higher volumetric energy density compared to hydrogen storage systems.
In addition, for the first time, repetitive power generation (10 charge-discharge cycles) of the CASB system with Boudouard equilibrium was demonstrated without degradation. Specifically, during the charging phase, C was deposited on the electrode via the electrochemical reduction of CO2 and the reduction of CO via the Boudouard decomposition. During the discharge phase, the C was oxidised to CO and CO2 via the Boudouard gasification reaction and electrochemical oxidation respectively. The researchers found that the C utilisation for energy generation of the CASB depended on the equilibrium between the three different carbon species (C, CO2, CO), also known as the “Boudouard equilibrium.”
The CASB system was able to utilise most of the carbon deposited on the electrode for energy generation, achieving maximum Coulombic efficiency of 84%, indicating that most of the stored energy can be obtained during the discharge phase. Furthermore, it demonstrated charge-discharge efficiency of 38%, and power density of 80 mW cm−2 at 800° C and 100 mA cm−2.
“Compared to hydrogen storage systems, the CASB system is expected to have a smaller system size and higher system efficiency”, says Prof. Ihara. The findings were presented in the paper “Carbon/air secondary battery system and demonstration of its charge-discharge,” published in Journal of Power Sources.
