Nitricity is using solar electricity to extract nitrogen directly from our air to produce nitric acid, the most critical nutrient in fertiliser that plants use to grow everything we humans eat. The key features of the company’s product are the decarbonisation, decentralisation and privatisation of fertiliser manufacturing, made possible by affordable, off-grid, intermittent solar electricity.

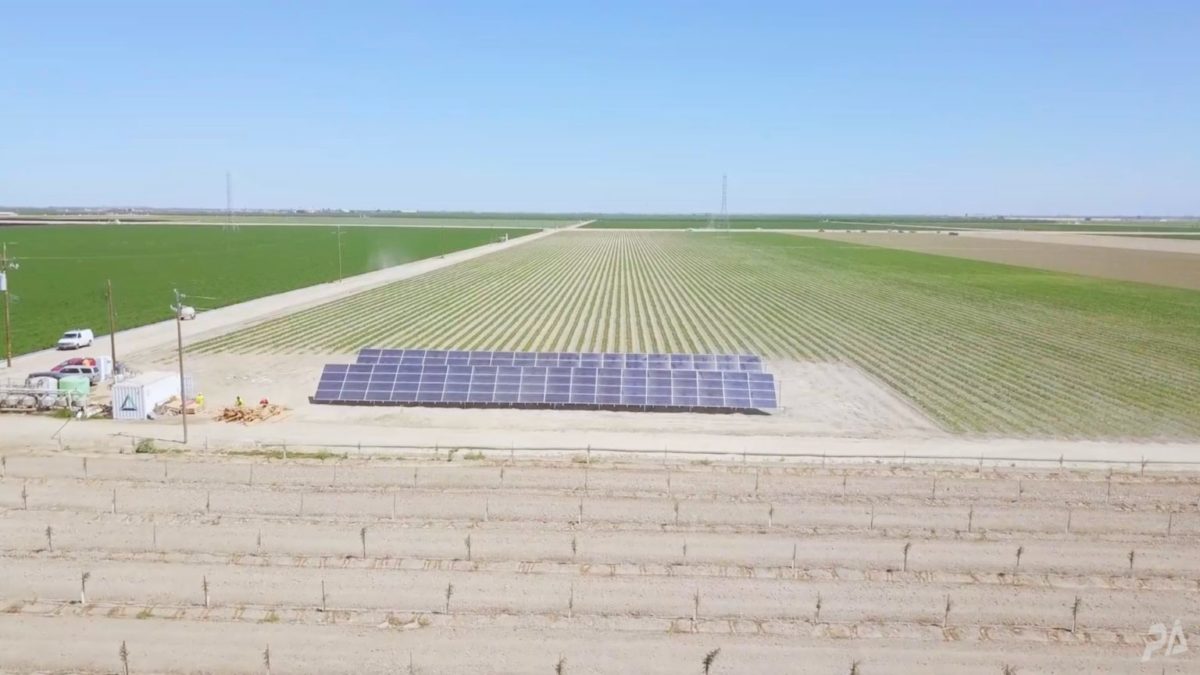

The company installed its first commercial project in October. The off-grid solar power system features 144 solar panels, but details describing the solar hardware are scant. On its website, Nitricity shares an experimental report on its pilot project in Fresno, California. The initial installation’s solar system was a 16-panel ground-mount array that outputted 75V to 85V, with a maximum power of 2.4kW.
The installation was coupled directly with a sub-surface irrigation system for a tomato crop. The paper covers the apparent success of the hardware, which produced tomatoes in a volume and quality that were similar to the control tomatoes. The control tomatoes received a standard, industrially produced nitrogen fertiliser.
Nitricty believes that its product will fill several niches. Because the system is easily distributed, farmers located far from fertiliser manufacturing centres will have additional financial incentive to try out the new technology.
The company’s process directly competes with industrial ammonia production – a process which directly creates more CO2 than any other human-driven chemical process on earth. The primary feedstock for modern nitrogen fixation is natural gas. The processing of the gas into ammonia releases these emissions. The chemical process emissions are only part of the story, as the emissions released from the fossil fuels traditionally used to heat and sustain the reaction are also excessive.
In its favour, the Haber-Bosch process was largely responsible for the Green Revolution of the middle 1900s, which helped catapult the global population. It is estimated that nearly half of all nitrogen currently found in human tissue was produced using this process.
Additionally, Niticity’s distributed, localised nitrogen solution also avoids transportation emissions. The company points out that market inefficiencies related to the distribution process of fossil-sourced nitrogen fertilisers can increase a farmer’s fertiliser cost as much as two to five times above the costs at a factory. Fossil-based fertiliser production costs are also volatile due to their direct relationship with natural gas – which, as mentioned earlier, supplies the primary feedstock for industrial ammonia.
In December, the US Department of Energy’s ARPA Energy awarded the group US$500,000 (AU$690,000) to advance their “non-thermal plasma reactor” process. ARPA notes that “literature and modelling analysis suggest that an energy efficiency 10 times better than present plasma values and equal to or better than that of the conventional Haber-Bosch process could be achieved.”
In an interview with Agrifood Conversations, the company noted that the intermittent nature of solar power is not only easily managed, but is actually a desired trait. According to one of Nitricity’s founders, Nicolas Pinkowski, the process “operates better intermittently. Because we manufacture nitrates (NO3-), there is a lot of oxygen to transport per lb of nitrogen.” Nitricity uses a 200-gallon tank to store the product prior to it being applied to the tomatoes.
In August, the company raised US$5 million (AU$7 million). Recently, Nitricity announced that it signed a deal with a wheat producer by releasing some emissions-focused math:
- 1 acre of wheat needs about 100 lbs (45 kg) of nitrogen.
- 100 lbs (45 kg) of N (via ammonia or urea) are produced in a coal- or NG-fired factory today, emitting ~300 lbs (135kg) CO2.
- ~1.5 lbs (0.7kg) of N2O are emitted per acre via the nitrification process. This means one acre emits approximately 450 lbs (200 kg) CO2 due to soil N2O emissions.
- In total, 1 acre of wheat can emit as much as 750 lbs (340kg) CO2 emissions from fertiliser production and application.
Nitricity’s technology mitigates nearly 100% of these emissions.
It could be that these fertilisation systems will integrate with solar powered greenhouses and other responsible land management techniques. In doing so, solar power will likely prove to be indispensable to our future food production.
