From pv magazine Global.

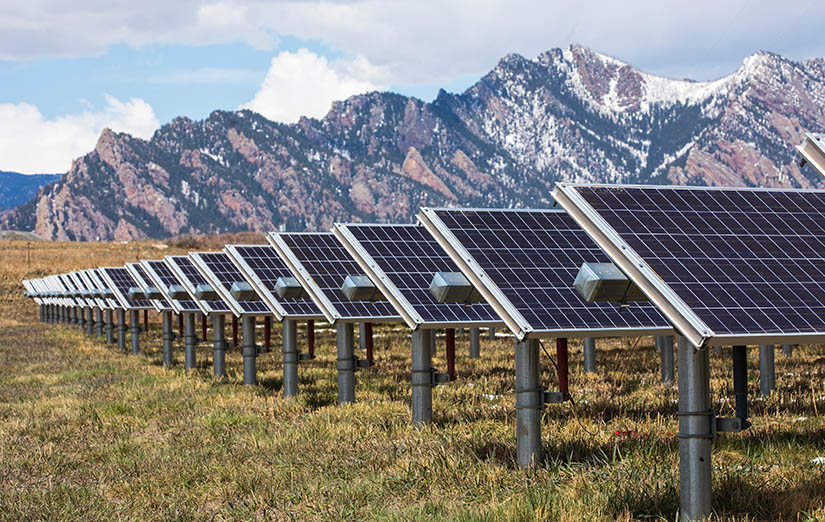

A research group led by the US Department of Energy’s National Renewable Energy Laboratory (NREL) has proposed a new approach to utilise connective heat transfer for solar module cooling in large-scale solar power plants.
Their modelling considers factors such as row spacing, panel height, and tilt angle. It also uses a length scale input to characterise the space through which air moves around or through the solar modules. In the standard models, by contrast, the length often used is a ratio of module dimensions, which ignores PV plant configuration.
“The convective heat transfer curve was generated through computational flow simulations and wind tunnel experiments that allowed for convective heat transfer to be described for a lacunarity length scale value that describes the spacing of the entire PV array through a single length unit,” the scientists said, claiming that using the lacunarity length scale leads to 1.5% more accurate power production.
Their techno-economic analysis considered 1 MW south-facing PV systems located in Phoenix, Arizona, with a fixed tilt angle of 30 degrees over different row spacings, or ground coverage ratio (GCR). The annual land lease cost was assumed at $0.054/m2. The row spacing of the PV plants was varied from two to 11 meters, corresponding to GCR values of 0.73 to 0.08.
“Increasing spacing could enable more varieties of crops and more types of agricultural equipment to be utilised in agrivoltaic systems,” said Jordan Macknick, who leads a different NREL research project focused on agrivoltaics. “That could potentially make these spaced-out solar systems more cost-effective and compatible with larger-scale agriculture.”
Through the modelling, the group ascertained that the optimal levelled cost of energy (LCOE) point was $0.29/kWh, with row spacing varying between 4.83 and 7.34 meters. With two-meter spacing, the LCOE was $0.33/kWh, and with 11 meters it was $0.36/kWh.
The group found that the greatest LCOE improvements were registered in climates with low average annual ambient temperatures and moderate to high average annual wind speeds across the US. They presented the modelling in the study “Technoeconomic Analysis of Changing PV Array Convective Cooling Through Changing Array Spacing,” recently published in the IEEE Journal of Photovoltaics.
Other recent proposals for using convective solar module cooling include packing PV panels in close proximity, and taking wind direction and module inclination into account.
