From the April edition of pv magazine global
The IHS Markit “Multi-tech mitigation case scenario” gives a prediction that at least 30 GW of coal plants will come offline each year through 2030, with an average of 45 GW each year, and a total of 505 GW in the 2020-30 period.
In Spain the installed capacity of coal generation will fall from almost 10 GW in 2019 to less than 1 GW in 2030. In line with this, Spanish utility Endesa (the operator of 13.7 GW of thermal plants in Spain) recently announced that it intends to replace a 1.1 GW coal plant in Andorra with a total of 1.7 GW of solar, wind and storage assets. Of this total, battery energy storage systems (BESS) will comprise 160 MW.
This announcement may appear to be a step change in operational and investment practices, favouring green technology, but this is unlikely to be a like for like replacement. Instead a mix of generation assets (i.e. gas, solar PV and wind) will fill gaps left by coal on a wider basis. Intermittent renewables, even when paired with energy storage, will struggle to provide the reliability and availability of coal generation at a reasonable cost by 2030. However, a key question for the energy storage sector over the next 10 years is what functions the technology can provide as coal is slowly phased out.

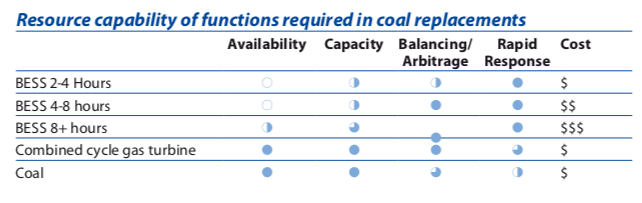

Coal traditionally has three key roles: Firstly, as a baseload generation asset, stabilizing electricity grids because it has very high levels of availability. Secondly, it is turned to during winter months when supply must be guaranteed for times of high demand (i.e. in capacity markets). Finally, coal has played a role in stabilizing wholesale and balancing market prices as it has a continuous and steady generation profile.
Each of these functions can be easily and efficiently met by combined cycle gas turbines, at low cost and lower carbon emissions than coal. However, as the climate emergency continues to dominate public discourse, it is prudent to examine how this need could also be met by renewable generation, with the help of energy storage.
Intermittent renewables are inherently unavailable for some of the time. Whilst this can be improved with energy storage, availability remains limited by its state of charge. This is because of state of charge management strategies or prolonged lack of energy generation from the associated renewable asset. With a large enough energy capacity, energy storage can make renewable resources dispatchable. However, the durations of storage required to achieve this (eight-plus hours) and the likely oversizing of the paired renewable energy resource would make this significantly more expensive than the gas power alternative. This makes very long duration storage in co-location unlikely based on short-term technology and cost developments. However, an increasing role is foreseen for co-located storage generally, particularly as renewable penetration levels increase. This is likely to be a leading role for energy storage as coal is decommissioned.
However, for the provision of capacity, energy storage can be a competitive solution. Battery energy storage has recently been successful in capacity markets, notably in the United States, the United Kingdom, and France. Energy storage assets with durations of one to four hours are playing an increasingly important role in meeting peak demand. With increasing penetrations of renewables, the size and importance of these markets – and therefore the opportunity for energy storage – are likely to increase. This will lead to energy storage being a key technology used in times when adequate generation must be guaranteed to ensure security of supply.
As coal is removed, and assuming an increasing percentage of renewable generation to compensate, wholesale energy prices will become more volatile – creating a growing opportunity for storage to participate in wholesale arbitrage and balancing. This is particularly likely in markets which will see high penetrations of solar power in the coming years, as the power generation profile of solar is predictable and does not align well with typical energy demand profiles. Existing projects in Australia and the United Kingdom are successfully pivoting away from solely relying on contracted ancillary service revenues by also trading in day-ahead and intraday markets. In California, wholesale revenue streams are accounting for a growing share of the revenue that storage assets receive.
The combination of energy storage and renewables is able to perform all of the key functions of coal generation. It is capable of balancing wholesale markets, and to some extent ensuring power supply through the provision of peaking capacity. Co-location will also be a major opportunity for storage as renewable penetration grows.
If policymakers prioritize clean generation, there will be clear roles for storage to fill following the decommissioning of 505 GW of coal generation. This would mark a shift for energy storage from a technology class used for a limited number of applications, to a major and important part of the grid technology mix.
The views and opinions expressed in this article are the author’s own, and do not necessarily reflect those held by pv magazine.
This content is protected by copyright and may not be reused. If you want to cooperate with us and would like to reuse some of our content, please contact: email@example.com.
“Coal traditionally has three key roles: Firstly, as a baseload generation asset, stabilizing electricity grids because it has very high levels of availability. Secondly, it is turned to during winter months when supply must be guaranteed for times of high demand (i.e. in capacity markets). Finally, coal has played a role in stabilizing wholesale and balancing market prices as it has a continuous and steady generation profile.”
A couple of things become apparent, the large scale Spain project with solar PV, wind, and energy storage, on the energy storage side that 9% to 10% energy storage is on the light side and should be increased to at least 33% to become a more dispatchable resource during the day. With energy storage, economies of scale haven’t been specifically “proven” with technologies like redox flow batteries. Some entities have “modelled” redox flow technologies. At around the 1GW storage point, redox becomes cost effective over running coal fired plants in “spinning demand” or “spinning reserve” all of the time. Right now there is a lot of “talk” about natural gas turbines as less costly than very large energy storage systems. The (coal-ilition) once claimed the TESLA “Big Battery” connected across the Neoen wind farm in Australia was a “six minute solution”, this was the lie that “they” told themselves. Also missed the point that energy storage is generation neutral and stacks grid services revenue streams into one asset. Will it be Australia once again, that will construct the first 1GW or larger redox flow battery to prove to the World, that this is not only a long lasting technology, if designed correctly into power blocks of storage and discharge, one could maintain, repair and upgrade the facility in perpetuity using the CIP (Capital Improvement Project) cycle.
The technology exists to burn coal by the PUTAR system to generate methane at AUD 1.00 per GJ and electricity at AUD 26 per MWh AND at the same time reduce emissions of greenhouse gasses in the atmosphere.
Possibly the only system which does this. No emissions in the exhaust gasses.
Burning natural gas has 70%mof the emissions of existing coal fired generation so it slows down the rate of increase but does not eliminate the problem as PUTAR does. Air in 410 ppm and air out nil ppm of greenhouse gasses.
