Radiative cooling-based solar cell with 50 mW/m2 of generation at night

Stanford University scientists have developed a solar cell with 24 hours of power generation via an embedded thermoelectric generator, which extracts power from the radiative cooler at night. Extra daytime power from excess heating comes from the cell itself.

April 8, 2022 Emiliano Bellini

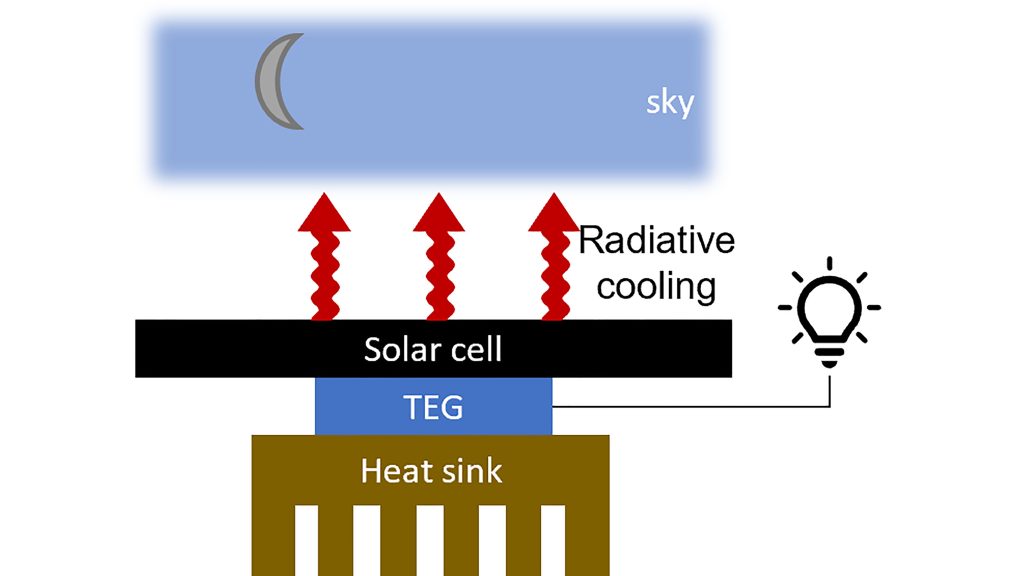

The solar cell generates electricity at night from the temperature difference between the solar cell and its surroundings.

Image: Sid Assawaworrarit

From pv magazine Global.

Researchers from Stanford University have designed a solar cell based on radiative cooling that purportedly produces electricity at night.

Radiative cooling occurs when the surface of an object absorbs less radiation from the atmosphere and emits more. As a result, the surface loses heat to the outer space and a cooling effect can be achieved without the need for power.

“Such radiative cooling effect has received significant recent interest, focusing on achieving cooling in various materials and on integration in energy-related applications, such as building cooling,” the scientist explained, noting that this flow may be used for power generation at night.

The solar cell is based on a thermoelectric generator (TEG) module that extracts power from the radiative cooler at night and extra daytime power from excess heating coming from the cell itself.

“What we managed to do here is build the whole thing from off-the-shelf components, have a very good thermal contact, and the most expensive thing in the whole setup was the thermoelectric itself,” said researcher Zunaid Omair.

The device achieved 50 mW/m² of power generation with a clear night sky and an open-circuit voltage of 100mV, which the scientists described as significantly higher than the values achieved in previous demonstration.

“The nighttime power generation is around 10–100 mW/m² depending on location and sky condition,” they said. “Our approach can provide nighttime standby lighting and power in off-grid and mini-grid applications, where PV cell installations are gaining popularity.”

They described their findings in “Nighttime electric power generation at a density of 50 mW/m² via radiative cooling of a photovoltaic cell,” which was recently published in Applied Physics Letters. Radiative cooling has been applied to solar panel cooling by researchers at Shanghai Jiao Tong University in China, the Purdue University in the United States, the Catalan Institute of Nanoscience and Nanotechnology and the Instituto de Ciencia de Materiales in Spain, and the Jordan University of Science and Technology and the Australian College of Kuwait.
